Description
About This Product

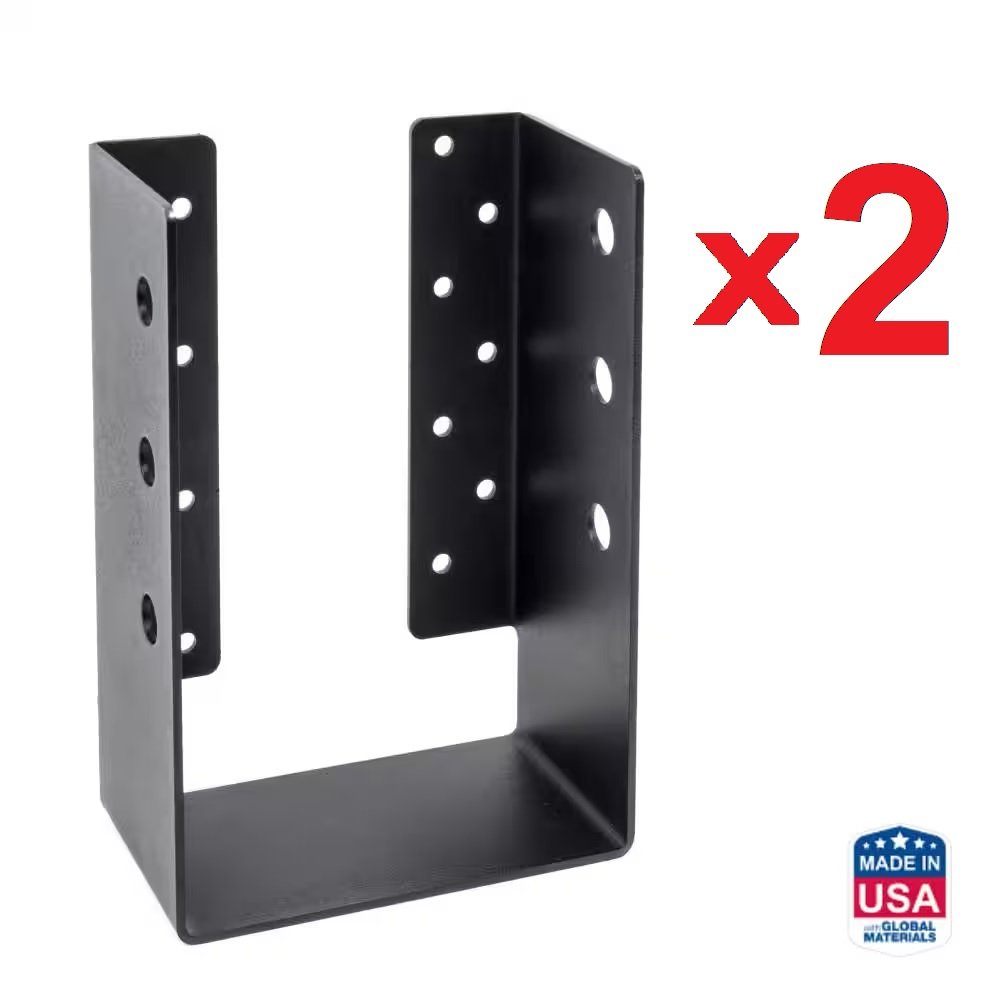

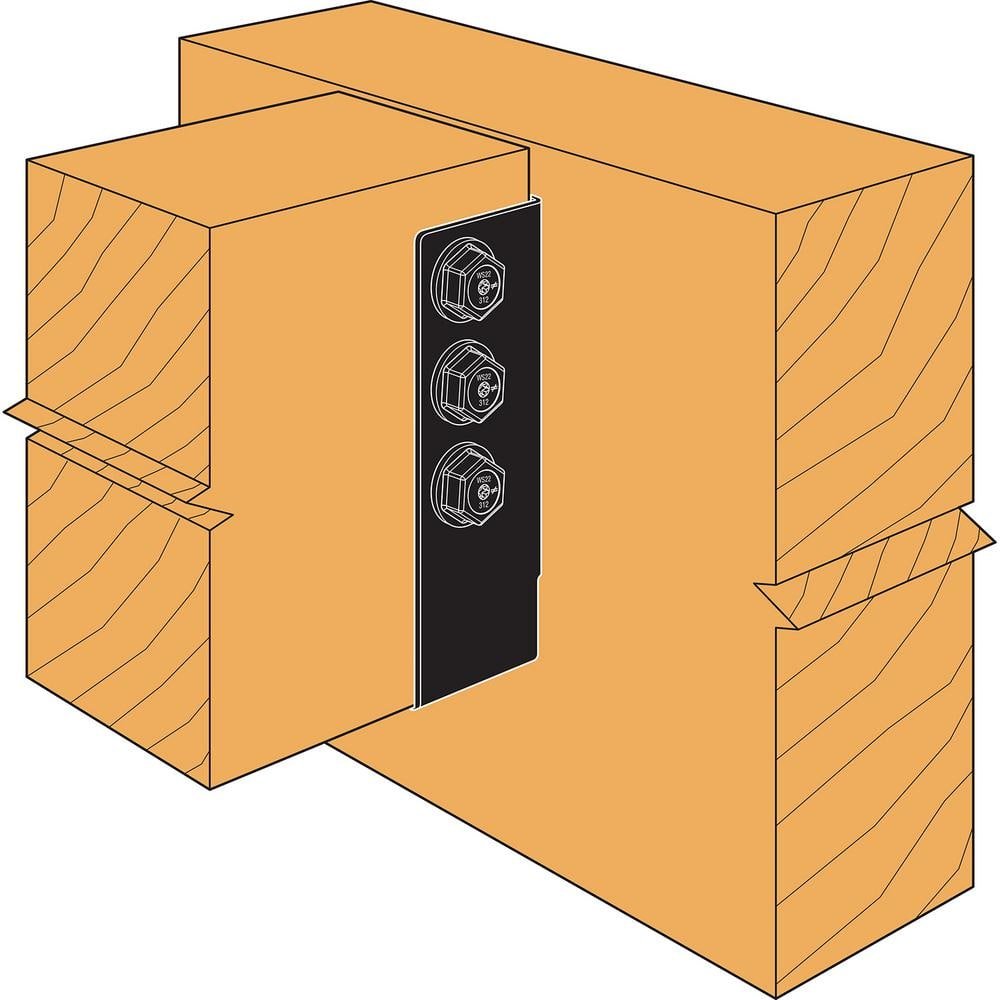

The Simpson Strong-Tie Outdoor Accents line of decorative hardware features connectors and fasteners that bring beauty and strength to custom outdoor living structures. APHH heavy concealed-flange hangers connect 4x and 6x beams to girders. Featuring a range of sizes, these hangers install easily with the Outdoor Accents structural wood screw, hex-head washer and Strong-Drive SDS Heavy-Duty Connector screw. APLH light hangers also available.
Highlights
- Complements the Outdoor Accents Mission Collection and Avant Collection
- Concealed-flange design features straight edges and provides a cleaner looking installation for joist connections
- Nominal joist size: 6×10
- Seat width: 5-1/2-in
- Made from 12-gauge steel
- ZMAX galvanization with a black powder coat offers extra corrosion resistance for exterior and treated-wood applications
- Install with the Simpson Strong-Tie SDS25300 SDS Heavy-Duty Connector screw to the header and the outdoor accents SDWS22312DBB structural screw and STN22 hex-head washer to the joist (fasteners sold separately)
Specifications

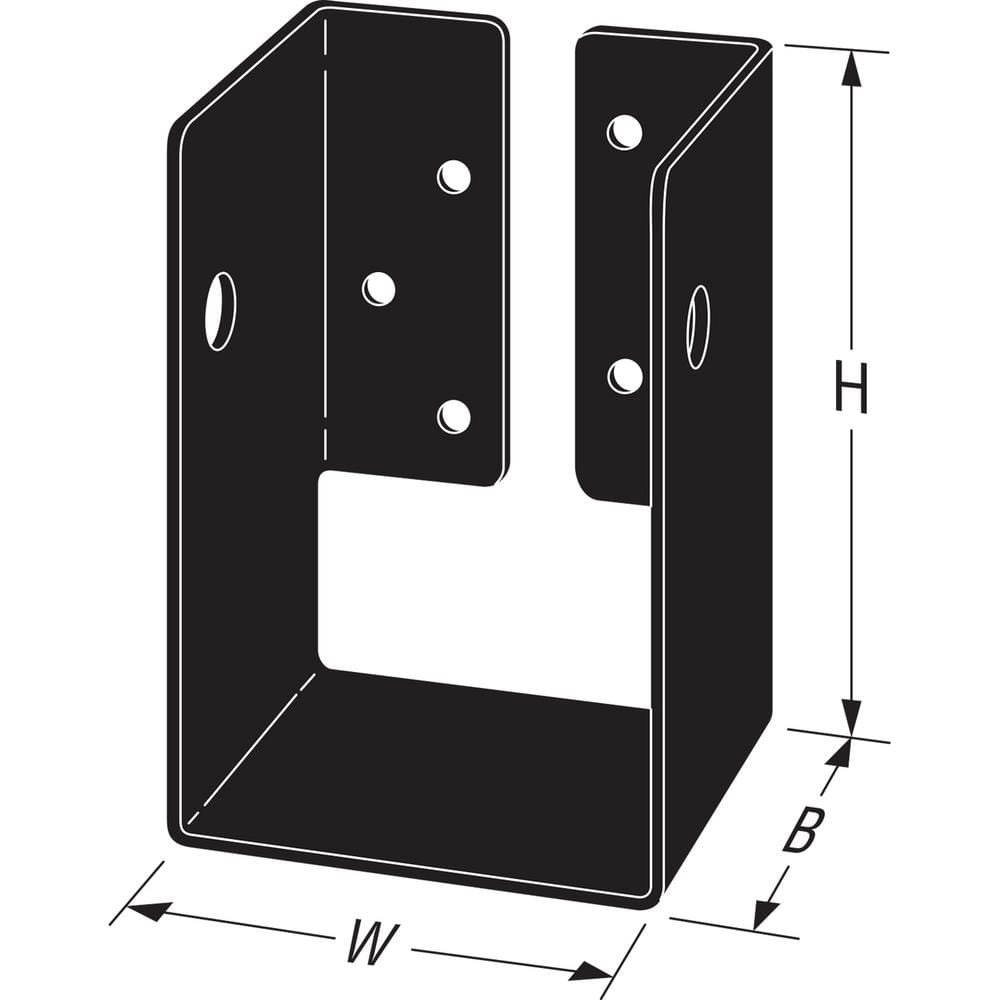

| Joist Hanger Size | 6×10 |
|---|---|
| Product Depth (in.) | 3.18 in |
| Product Height (in.) | 8.6 in |
| Product Width (in.) | 5.7 in |
| Connector Finish | Powder coated |
| Fasteners Included | Fasteners Not Included |
| Features | Decorative |
| Gauge | 12 |
| Hanger Flange Type | Concealed Flange |
| Hanger Modifications | None |
| Material | Steel |
| Package Quantity | 2 |
| Product Weight (lb.) | 2.9 lb |
