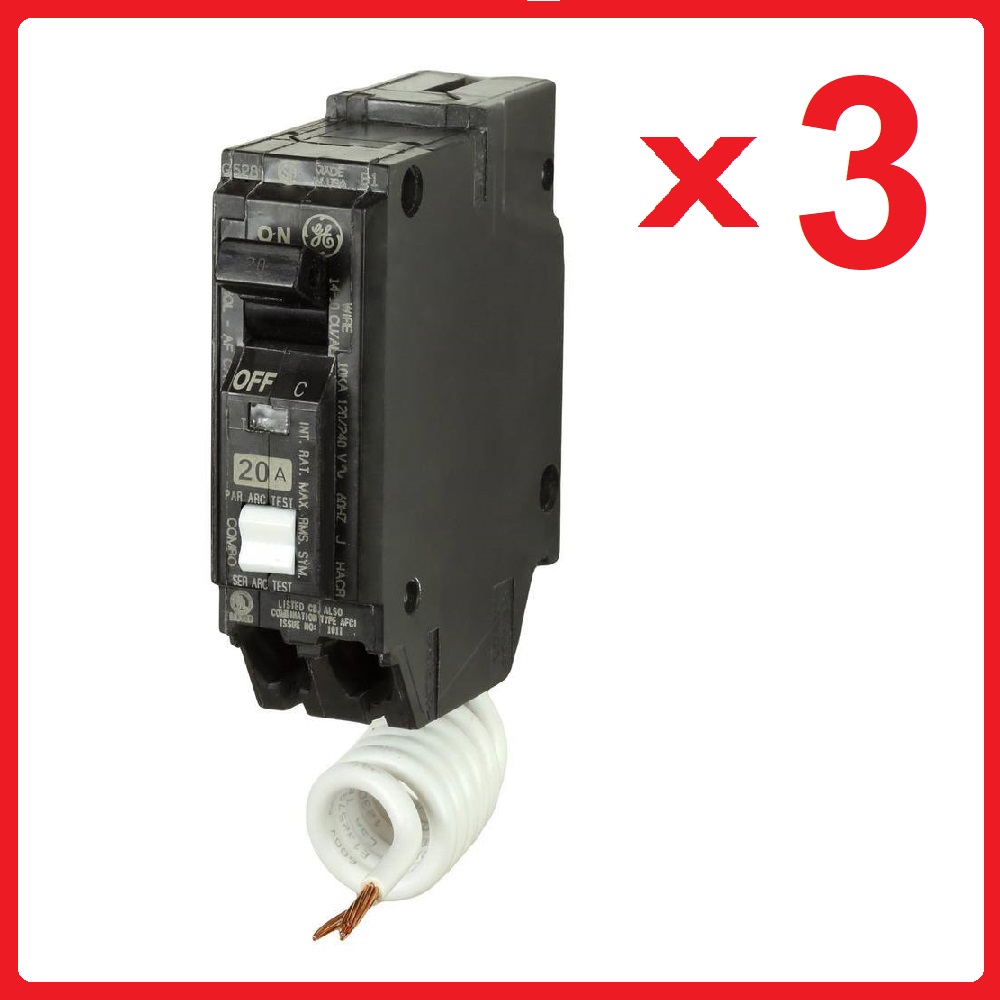

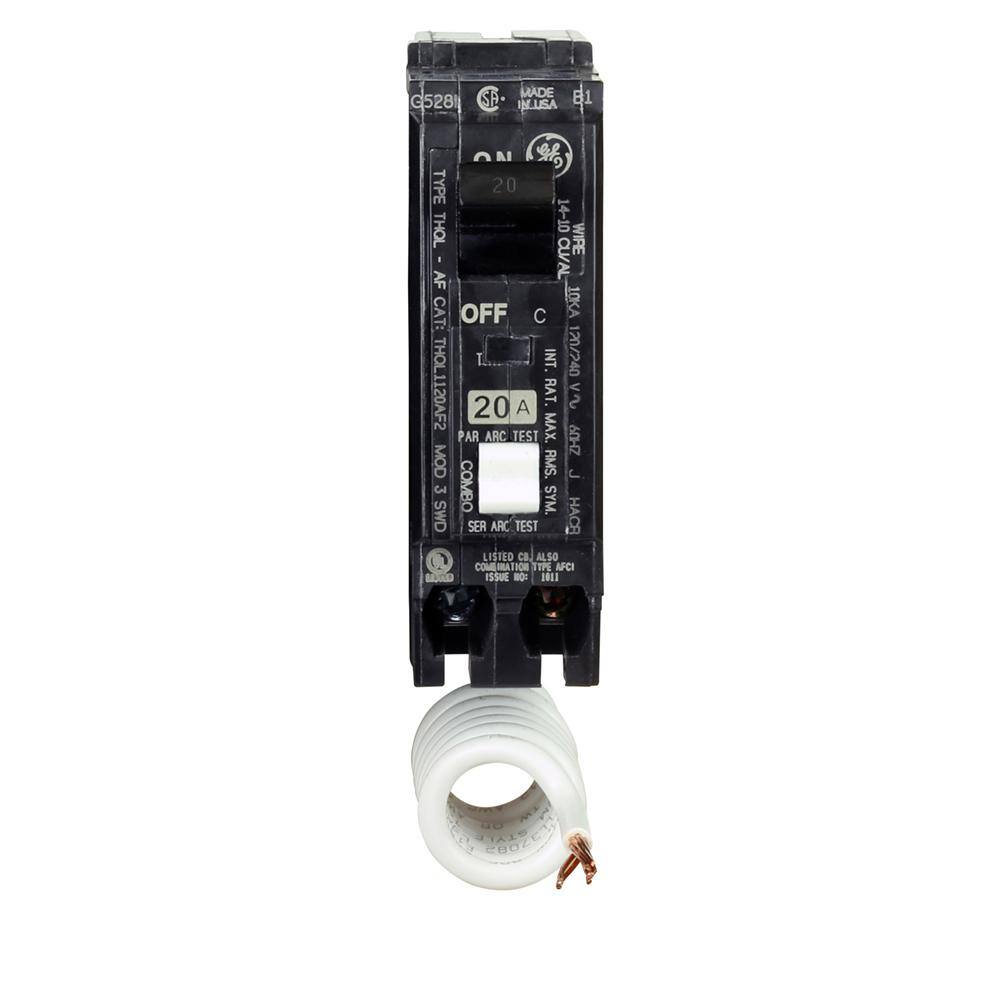

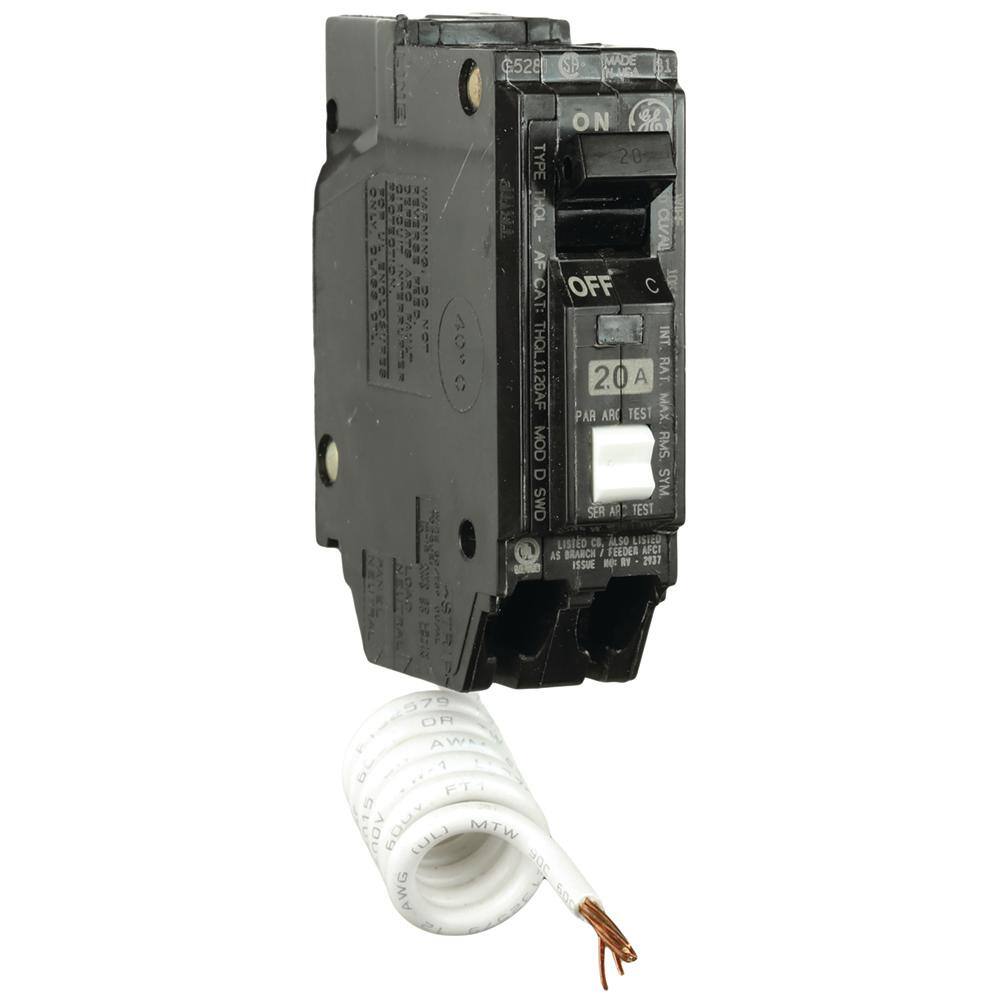

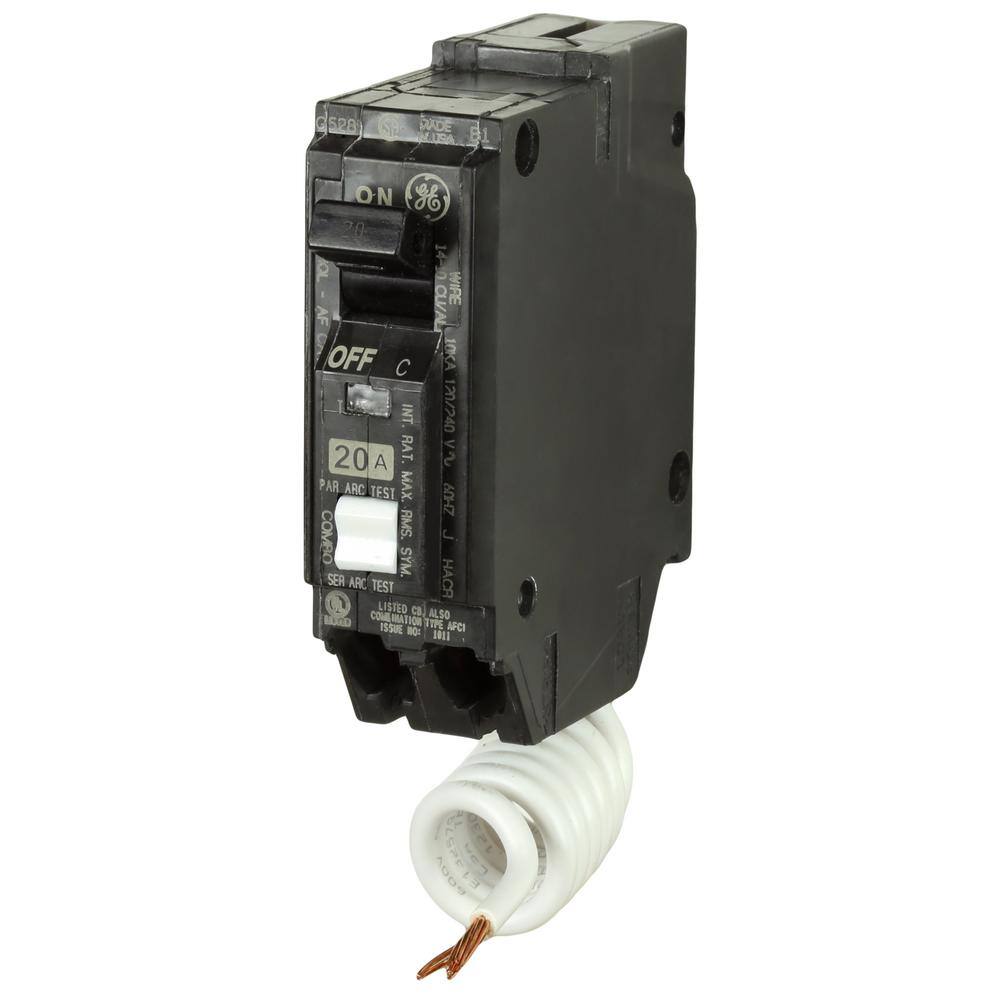

Name: (3) GE Q-Line 20 Amp 1 in. Single Pole Arc Fault Combination Breaker THQL1120AFP2 -
SKU: 2255-GE-THQL1120AFP
Price: 110.95 USD
Availability: OutOfStock

Description

Product Overview

The GE Q-Line 20 Amp 1 in. Single-Pole Arc Fault Combination Circuit Breaker detects arc faults in both parallel and series wiring. The circuit breaker has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The unit has a tin-plated copper stab to create a reliable, permanent and corrosion-resistant connection. The breaker case is made of heat-resistant thermoset for stability and structural integrity.

Key Features

Use to detect and mitigate arc faults in both parallel and series wiring
Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connection
Box type terminals
Calibration screw is cemented to prevent shifting
Case is made of heat-resistant thermoset for stability and structural integrity
Trips to the center position
Meets NEMA standards
ANSI certified and CSA and UL listed

Additional information

Product Depth (in.)	4.5 in
Product Height (in.)	3 in
Product Width (in.)	1 in
AIC Rating	10000
Breaker Type	Standard
Connection Type	Pigtail
Interruption Type	AFCI
Maximum Amperage (A)	20 A
Mounting Type	Plug-On
Number of Poles	Single
Number of Spaces	1
Pack Size	1
Product Weight (lb.)	.479 lb
Series Type	Not Specified
Trip Unit	Electronic
Voltage (V)	120 V
Certifications and Listings	UL Listed
