Description

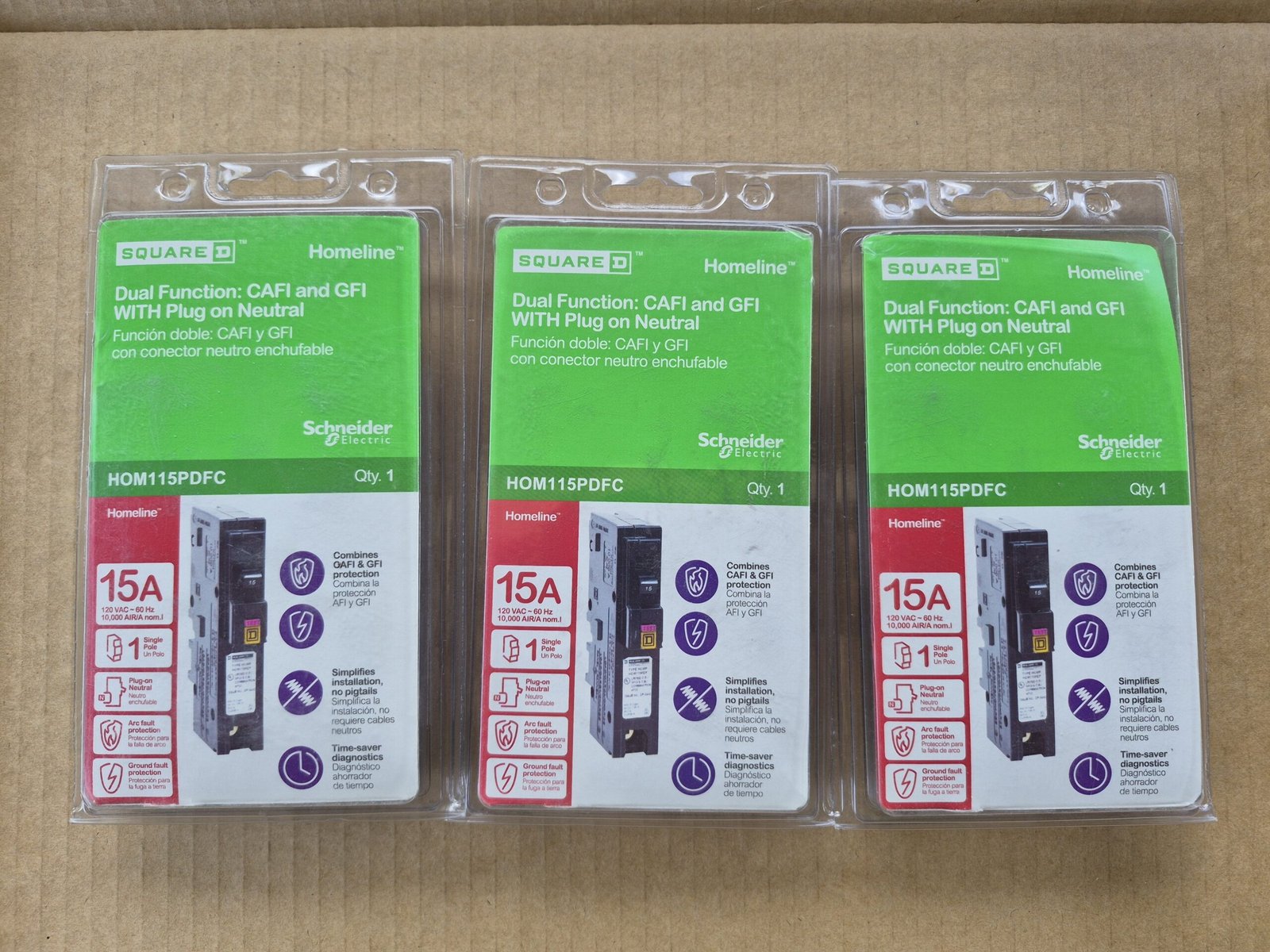

Square D by Schneider Electric Homeline 15 Amp 1-pole Plug-on Neutral Dual Function Circuit Breaker is a space and labor saving device, engineered to meet prevailing National Electric Code requirements. This device combines 2 critical technologies; Combination Arc Fault protection and ground fault protection (class A), in a single, easy-to-install device. The National Electric Code now requires both Combination Arc Fault and ground fault protection on all 1-Pole, 15 Amp and 20 Amp kitchen and laundry circuits. Prior to the release of this new device, a contractor or homeowners only choice would have been to use a Combination Arc Fault circuit breaker in conjunction with an expensive, bulky ground fault receptacle. The new dual function circuit breakers help reduce cost and eliminate the hassle of using 2 separate devices to provide this essential protection. It’s a win for contractors and homeowners alike. Designed for reliability, the Homeline Plug-on Neutral Dual Function Circuit Breaker connects directly to the neutral bar, providing a time and labor-saving installation. Several advantages from the plug-on neutral design are fewer connections which lead to faster installation and an innovative neutral clip eliminates pigtails which in turn frees gutter space. Like all Square D CAFI circuit breakers, it is integrated with time saver diagnostics, a unique feature that provides additional circuit information and minimizes troubleshooting at the touch of a button.
Highlights
- Square D Homeline 15 Amp Single-Pole Plug-On Neutral Dual Function (CAFCI and GFCI) Circuit Breaker
- Innovative neutral connection design leads to fewer connections and faster installation, no pigtails which frees up gutter space
- NEC 2020/2023/2026 Compliant
- This breaker needs 1 space in a Plug on Neutral breaker box for installation.
- 120 V AC
- 10000 AIR
- ANSI certified and UL Listed
Specifications
| Product Depth (in.) | 2.98 in |
|---|---|
| Product Width (in.) | 1 in |
| AIC Rating | 10000 |
| Breaker Type | Standard |
| Connection Type | Pigtail |
| Interruption Type | AFCI/GFCI |
| Maximum Amperage (A) | 15 A |
| Mounting Type | Plug-On |
| Number of Poles | Single |
| Number of Spaces | 1 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Series Type | Homeline |
| Trip Unit | Electronic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
