Up for sale is a

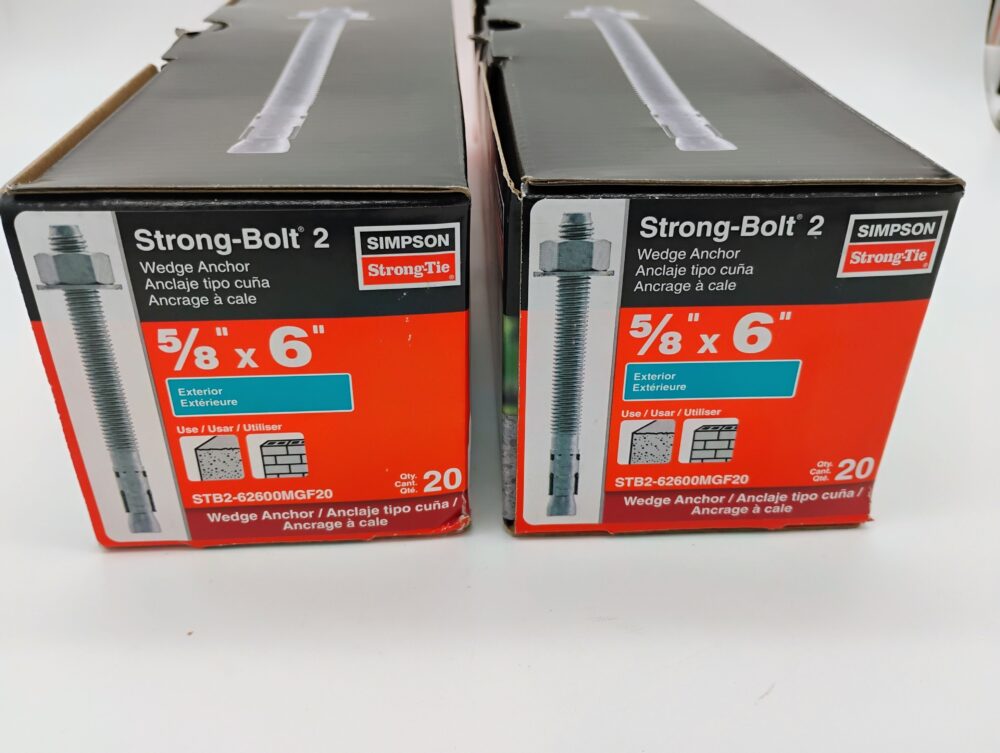

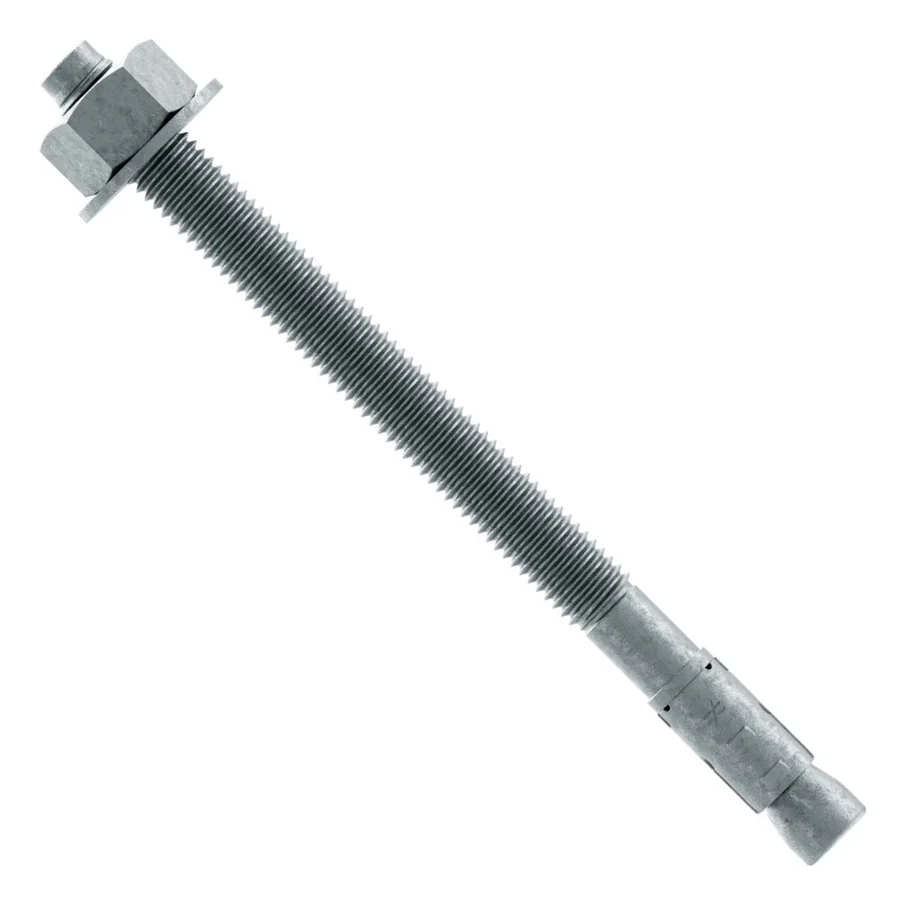

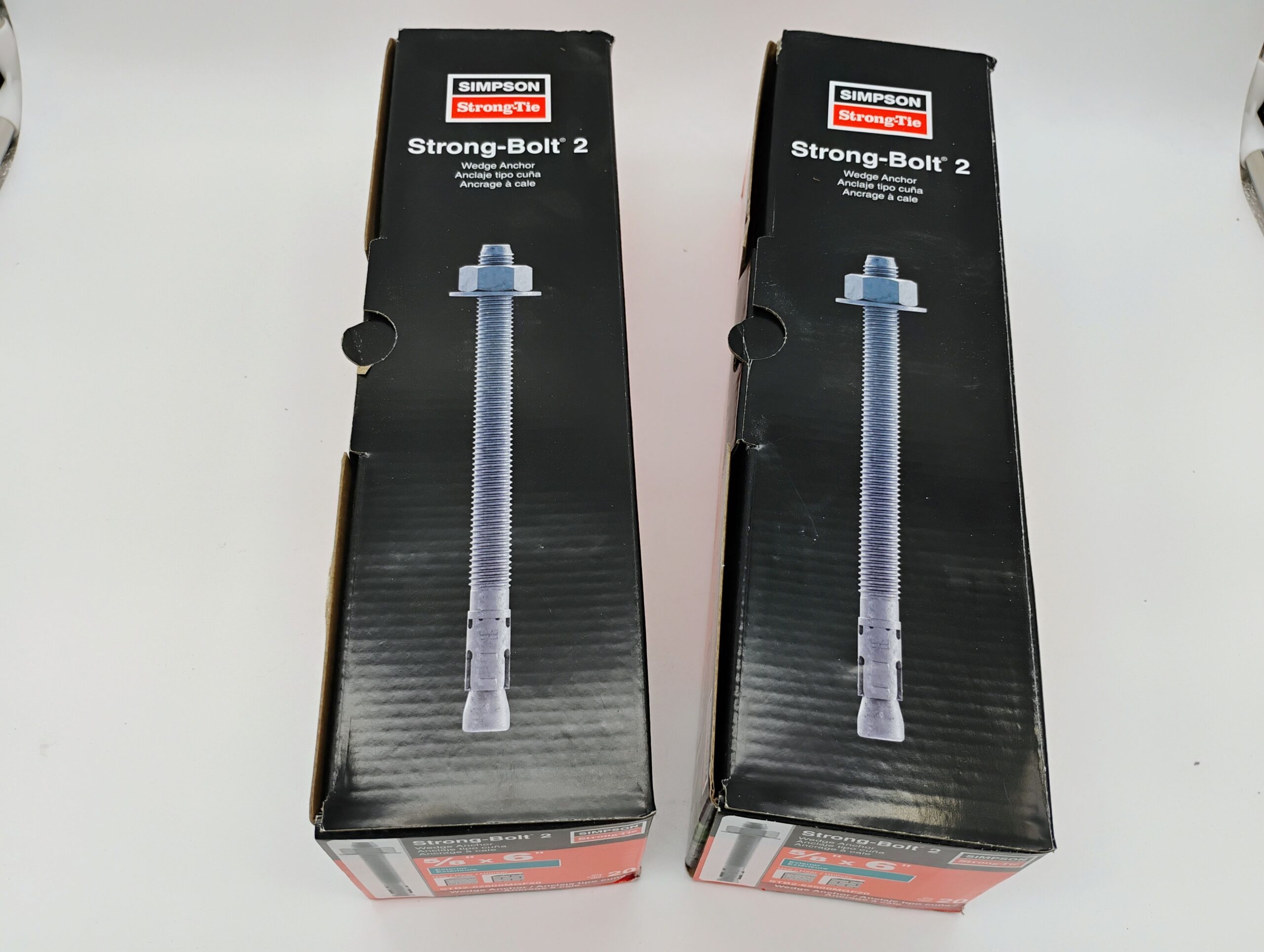

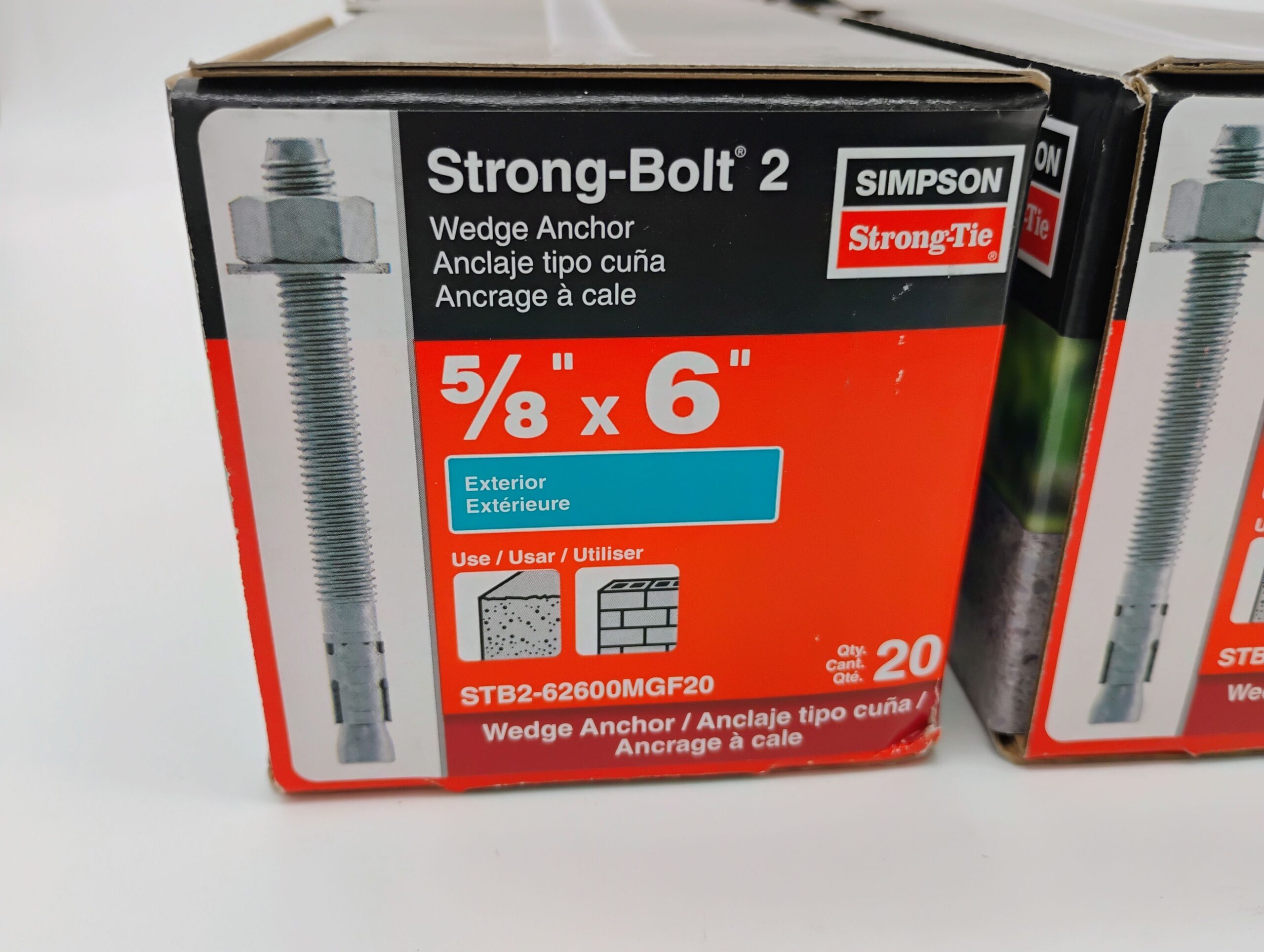

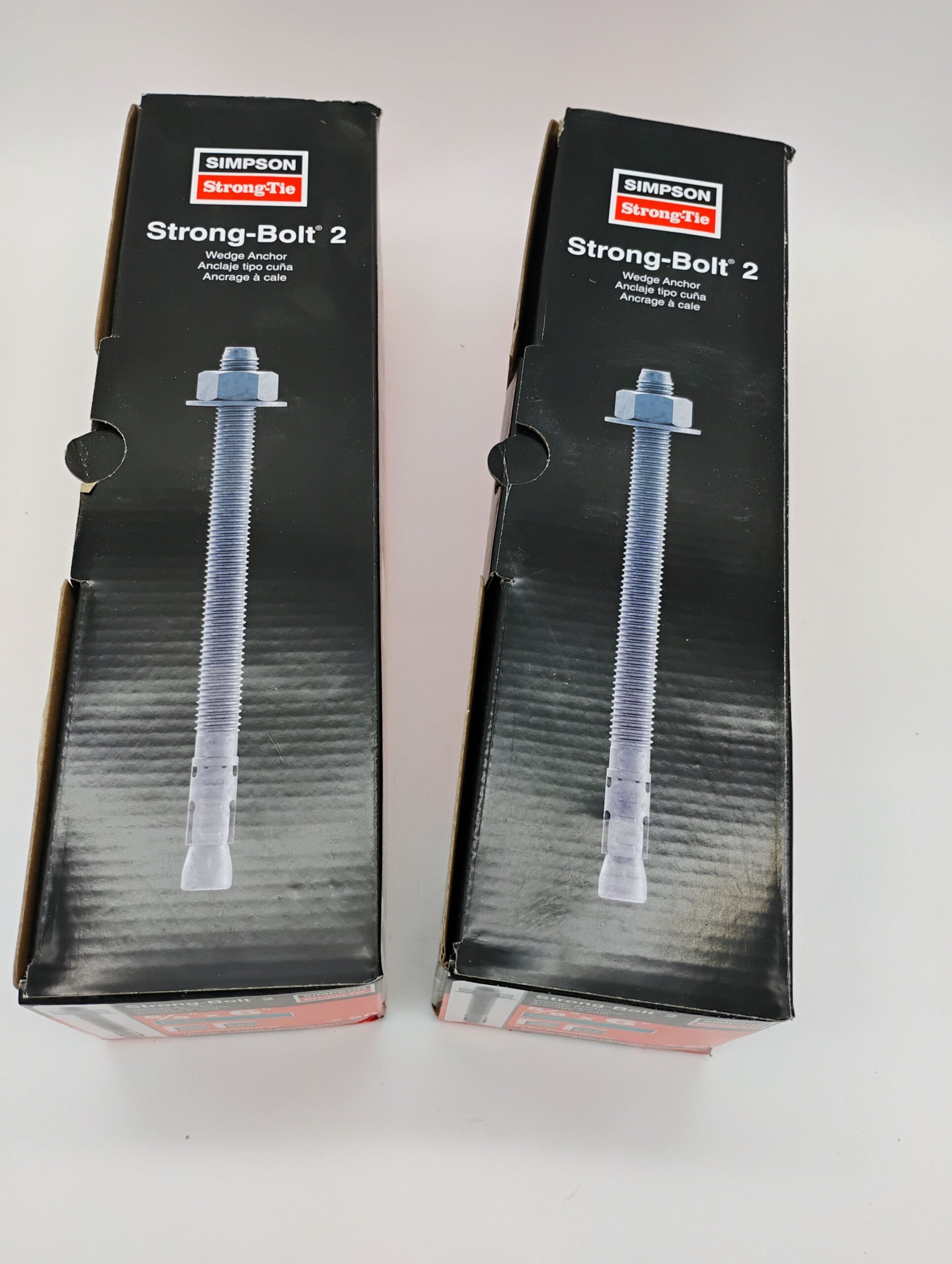

40 Simpson Strong-Tie STB2-62600MGF20 Strong-Bolt (5/8″ x 6″) Mechanically Galvanized Wedge Anchor, Fully Assembled
Description
Simpson Strong-Tie STB2-62600MGF20 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for reliable tension and shear loads in cracked and uncracked concrete. Ideal for anchoring structural columns, racking systems, machinery, or heavy-duty fixtures.
Simpson Strong-Tie STB2-62600MGF20 Includes
- (20) 5/8 in. x 6 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-62600MGF20 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4 in.
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-62600MGF20 Applications
- Anchoring structural columns in concrete
- Securing racking systems in warehouses
- Installing machinery and heavy-duty fixtures
- General construction requiring reliable tension and shear loads
Simpson Strong-Tie STB2-62600MGF20 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.

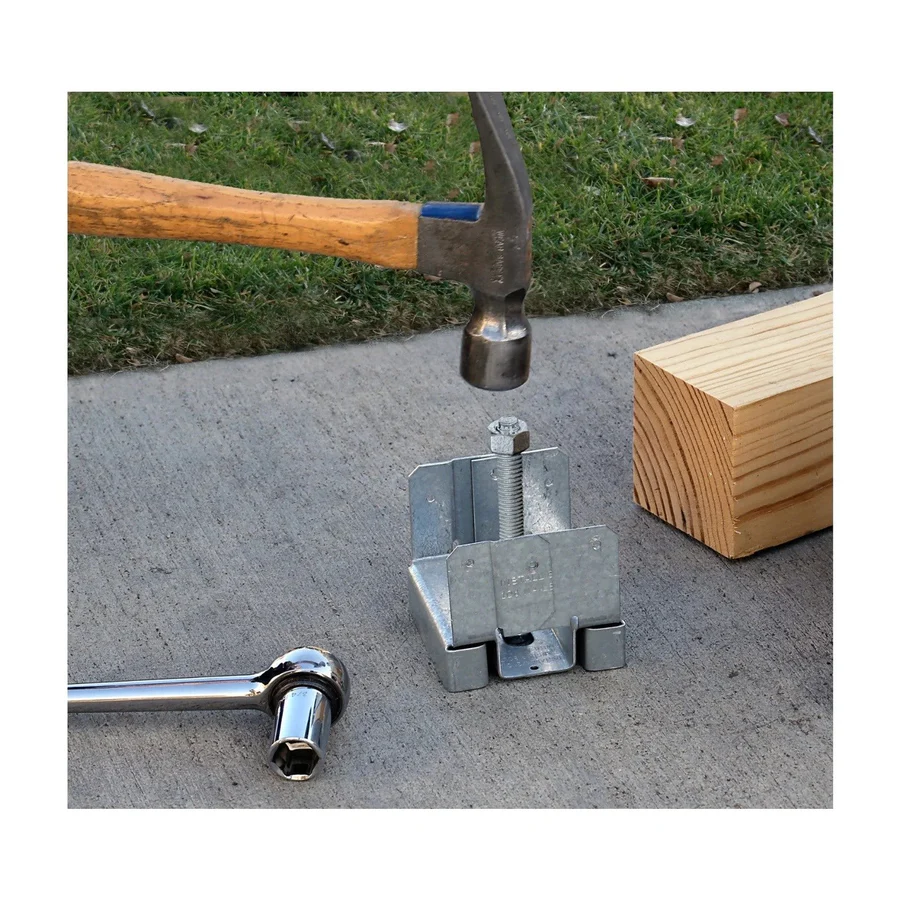

- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-62600MGF20 Specifications
| Diameter | 5/8 in. |
| Length | 6 in. |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 5/8 in. |
| Fixture Hole Size | 11/16 in. |
| Installation Torque | 60 ft. lbf. |
| Thread Length | 3-15/16 in. |
| Wrench Size | 15/16 in. |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
