Description

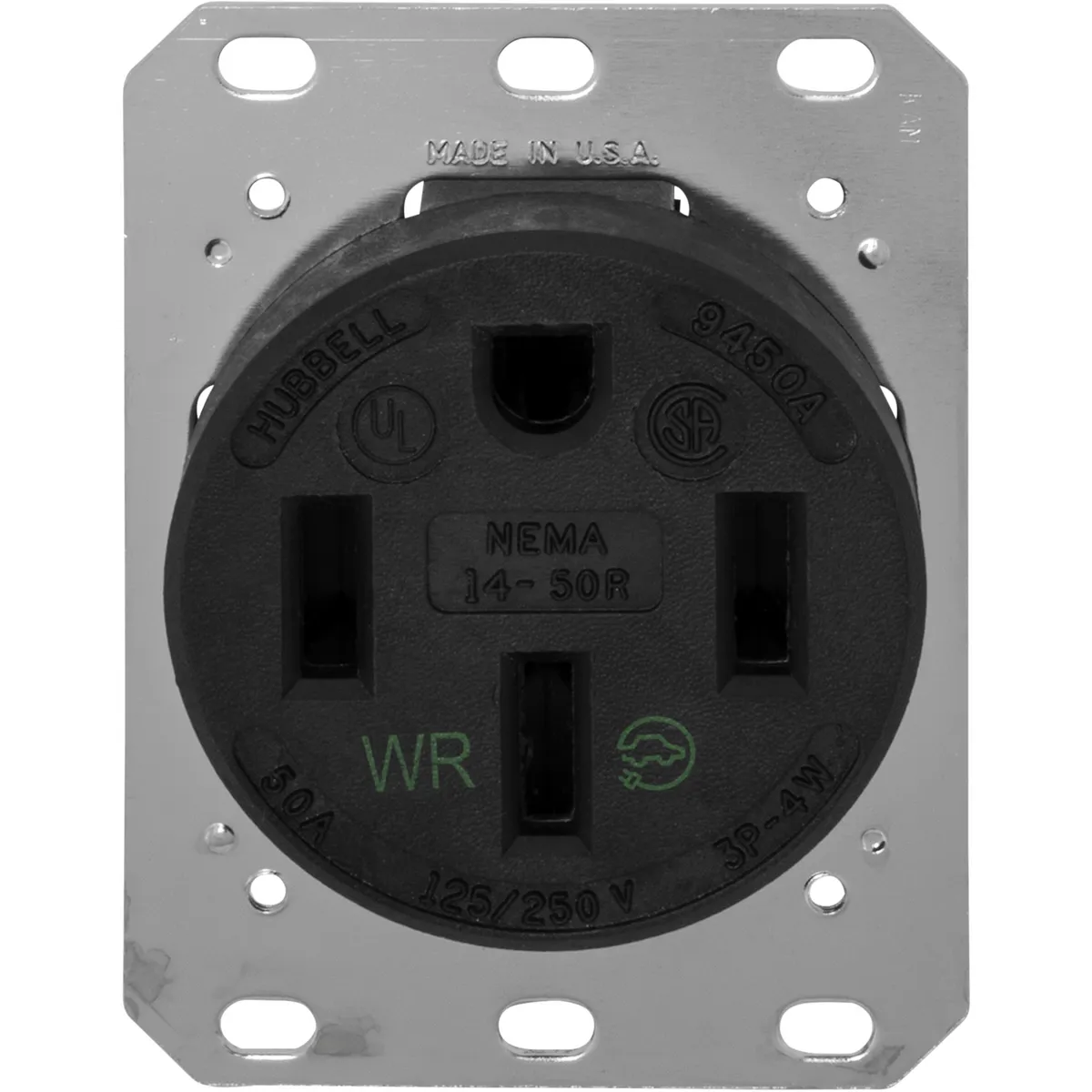

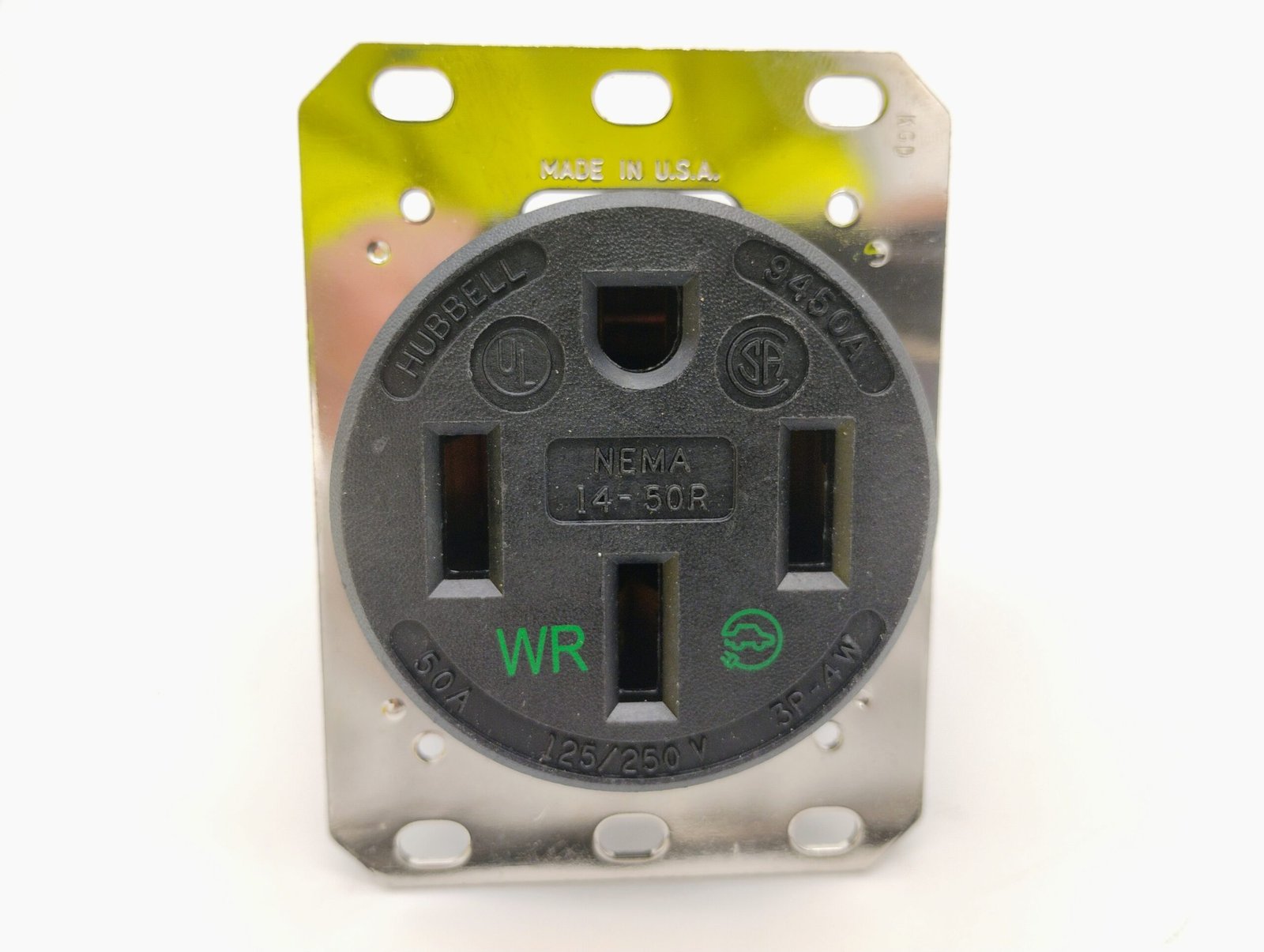

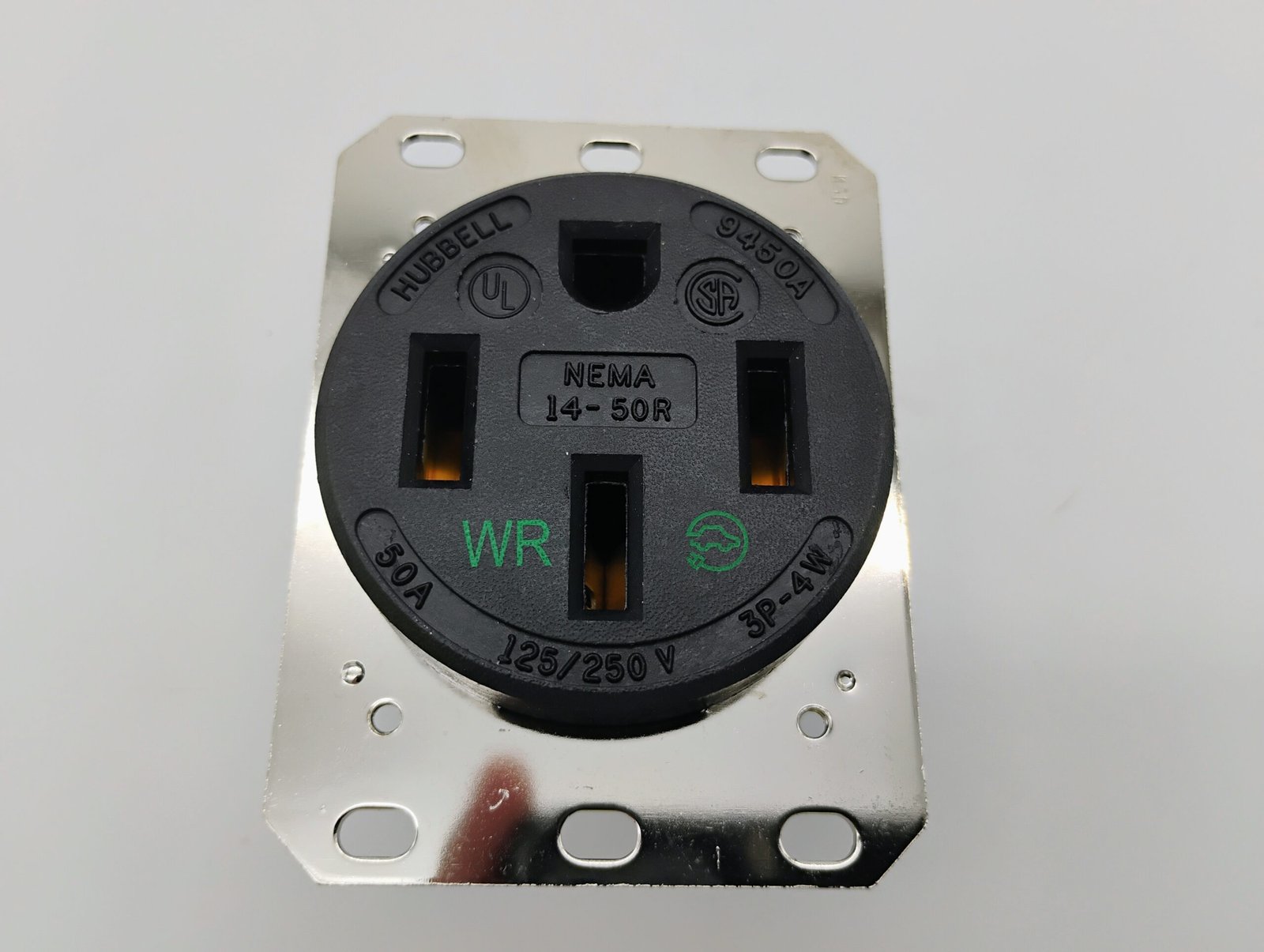

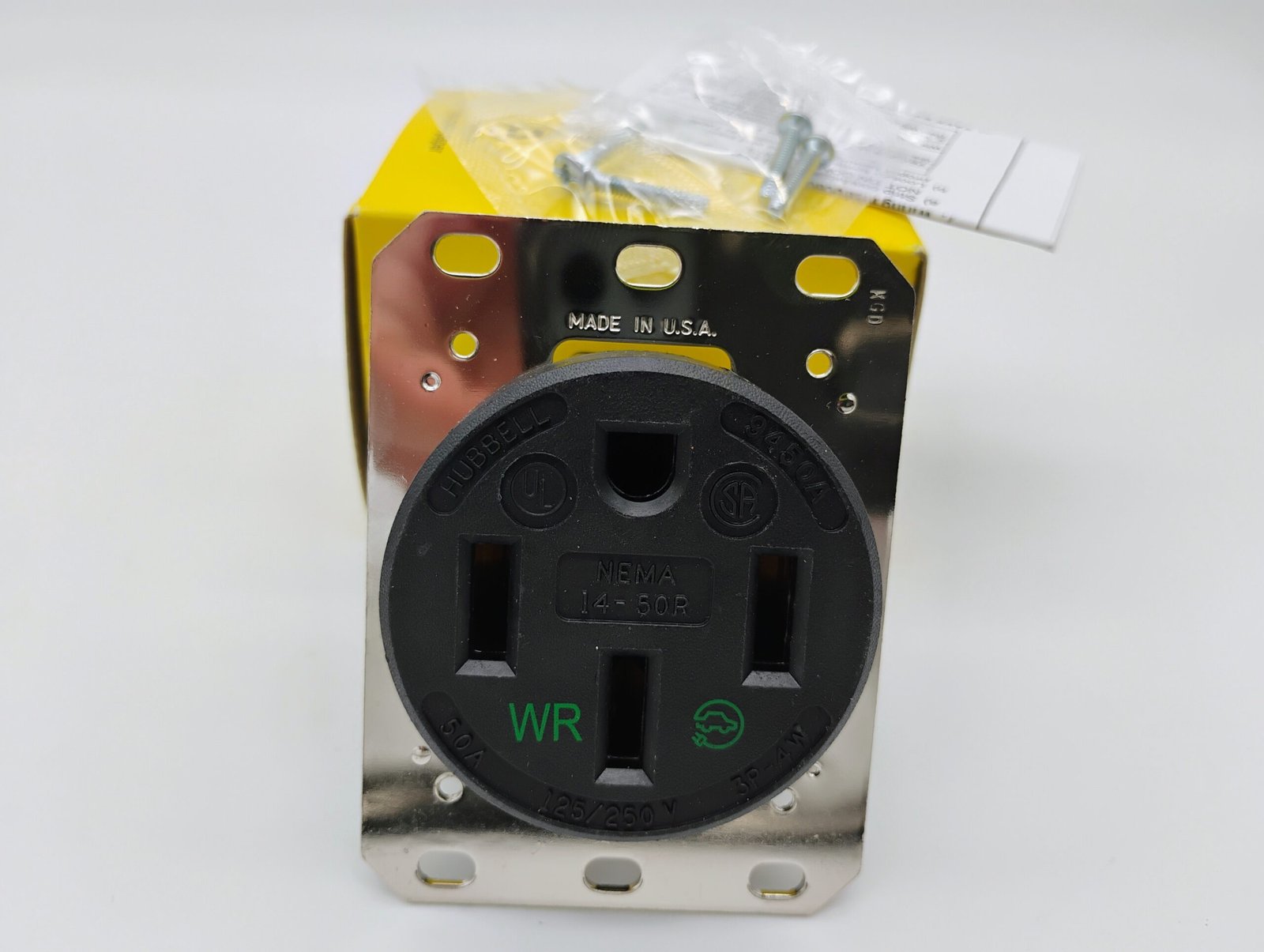

Hubbell HBL9450A 50A 125/250V 3-Pole 4-Wire NEMA 14-50R Receptacle – Black
Key Features:
-
Brand: Hubbell Wiring Device-Kellems
-
Catalog Number: HBL9450A
-
Type: Receptacle (NEMA 14-50R)
-
Color: Black
-
Amperage: 50A
-
Voltage: 125/250V, Single Phase
-
Wattage: 12,500W
-
Poles: 3-Pole
-
Wires: 4-Wire Grounding
-
Connectivity: Back & Side Wired Screw Terminals
-
Wire Size: #12 AWG to #4 AWG
-
Material: Reinforced Thermoplastic Polyester housing, Brass contacts, Copper terminals, Steel mounting plate
-
Mounting: Screw Mounting
Specifications:
-
Operating Temperature: -40°C to 75°C (continuous, without impact)
-
Dielectric Strength: Withstands 2,000V minimum
-
Weight: 0.7 lb
-
Dimensions: 3.28″ (L) x 2.75″ (W) x 2.44″ (H)
Certifications & Compliance:
-
UL Listed (File E2186)
-
CSA Certified
-
NEMA WD-6 Compliant
-
EU RoHS Compliant
-
BABA Compliant (valid through Dec 2025)
-
TAA Compliant (valid through Dec 2025)
UPC: 783585015316
