Description
The Square D by Schneider Electric Homeline 15 Amp One-Pole Circuit Breaker is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-Listed unit is rated for 120/240 VAC and 10,000 AIR. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
Highlights
- Homeline 15 Amp one-pole circuit breaker
- Plug-In design, easy to install
- Switching duty rating (SWD) for 15 Amp one-pole breakers
- Compatible with Homeline load centers and CSED devices
- 120/240-Volt AC
- 10,000 AIR
- Limited lifetime warranty
Specifications

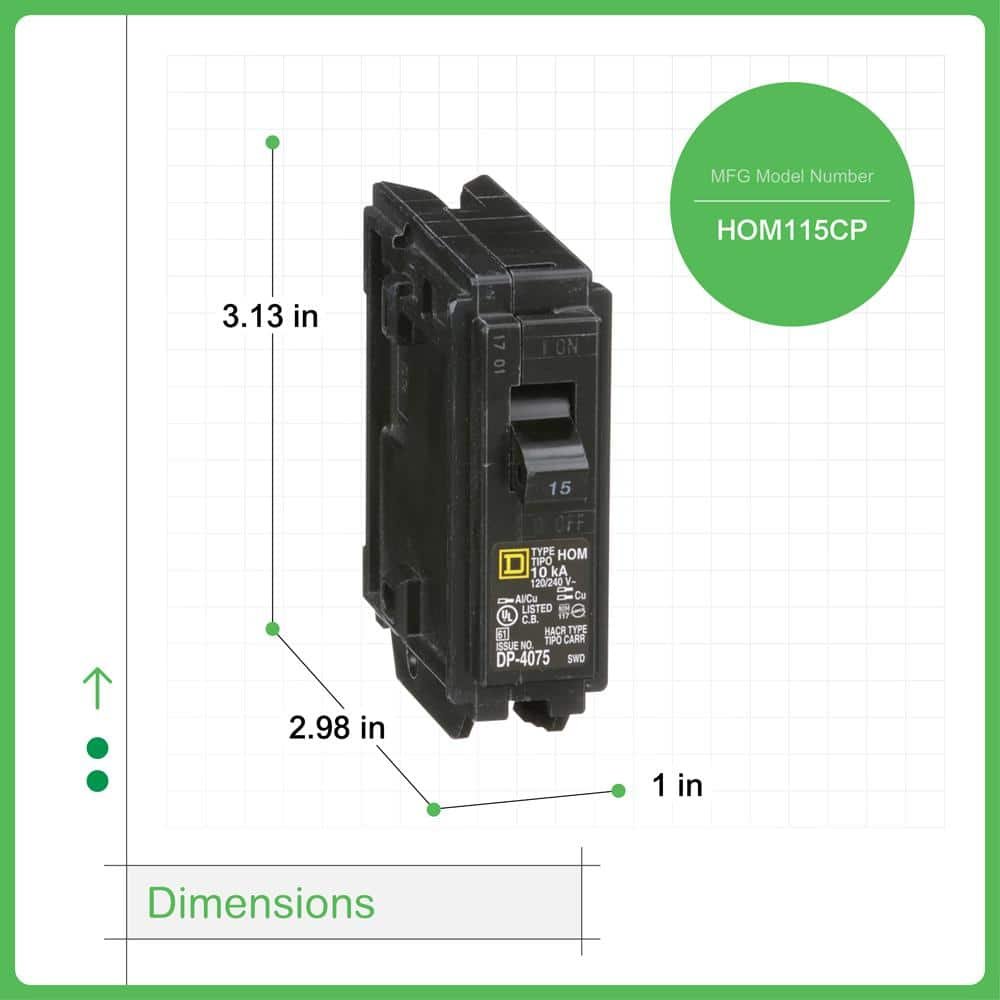

| Product Depth (in.) | 2.98 in |
|---|---|
| Product Width (in.) | 1 in |
| AIC Rating | 10000 |
| Breaker Type | Standard |
| Connection Type | Non-Neutral |
| Interruption Type | Standard Trip |
| Maximum Amperage (A) | 15 A |
| Mounting Type | Plug-On |
| Number of Poles | Single |
| Number of Spaces | 1 |
| Pack Size | 1 |
| Product Weight (lb.) | 0.28 lb |
| Series Type | Homeline |
| Trip Unit | Thermal Magnetic |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
