Description

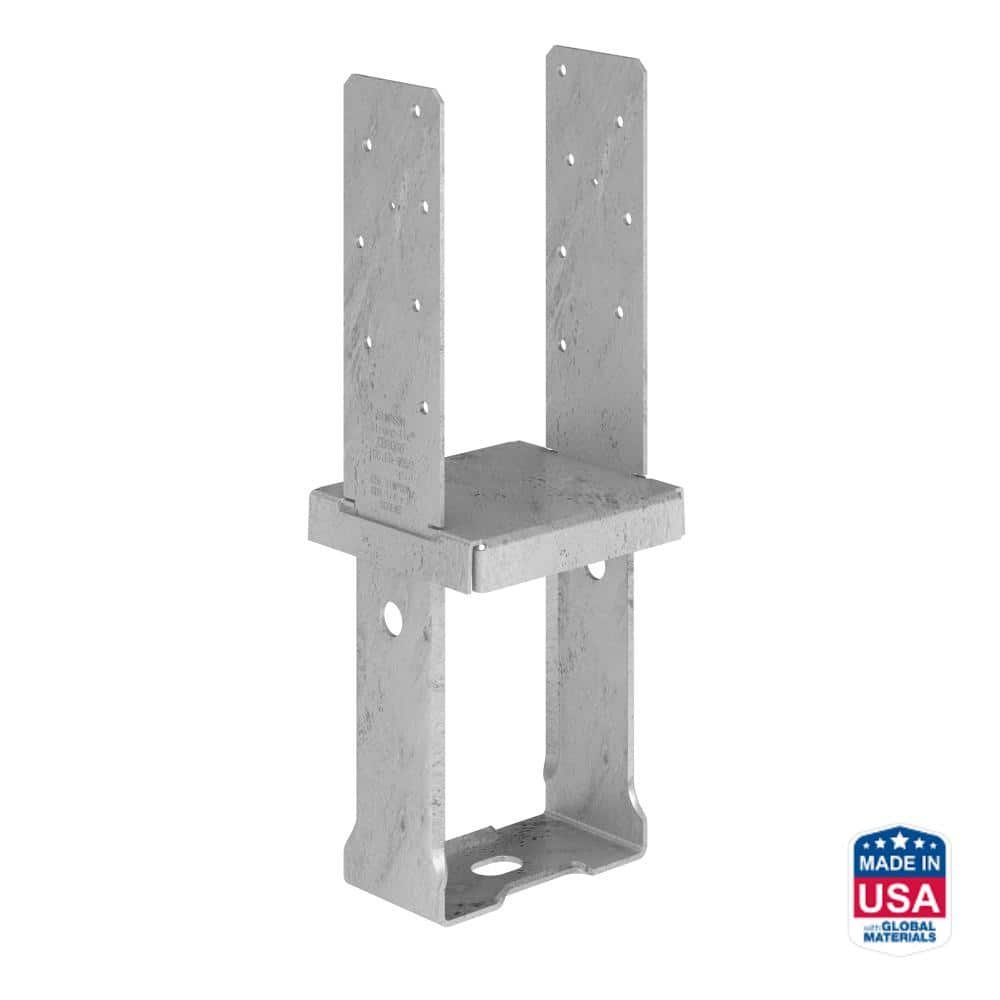

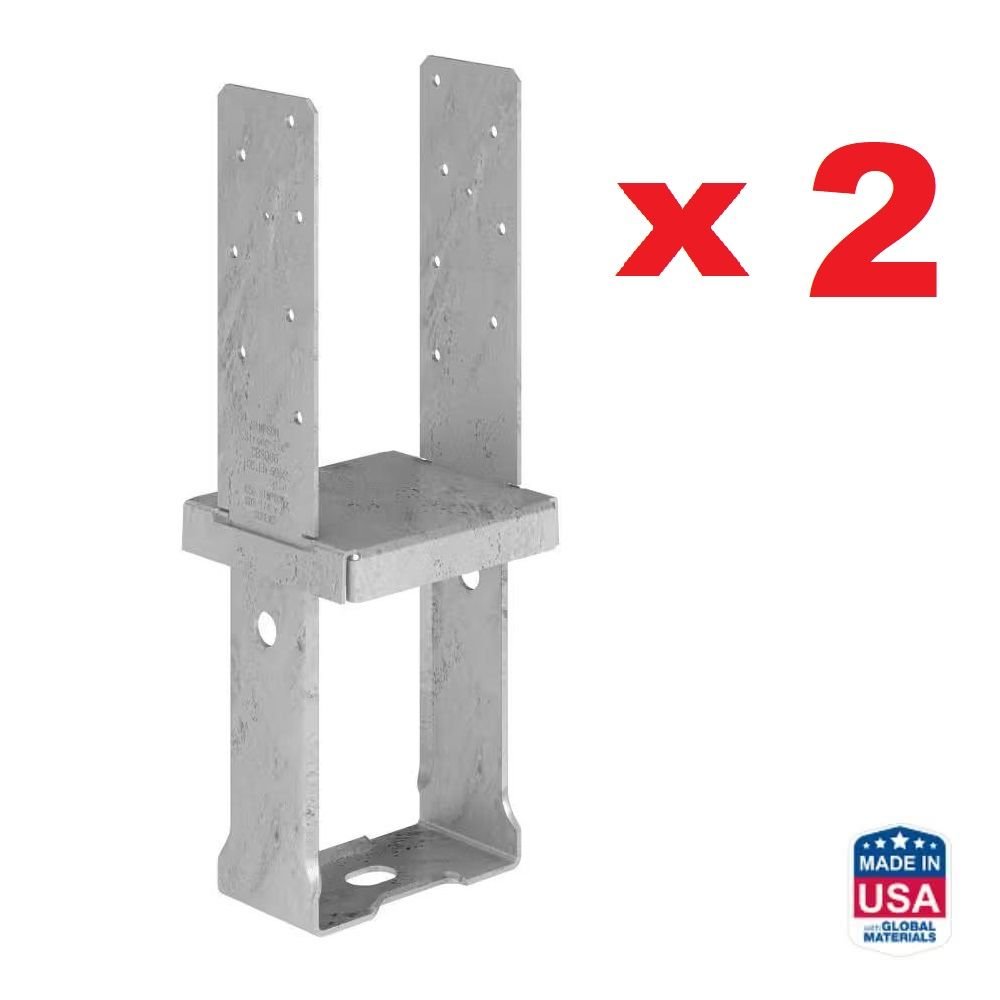

Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The CBSQ series provides a connection between a post (or column) for decks, patio covers and other top-supported structures.
Highlights
- Uses Strong-Drive screws, which allow for fast installation, reduced reveal and high capacity

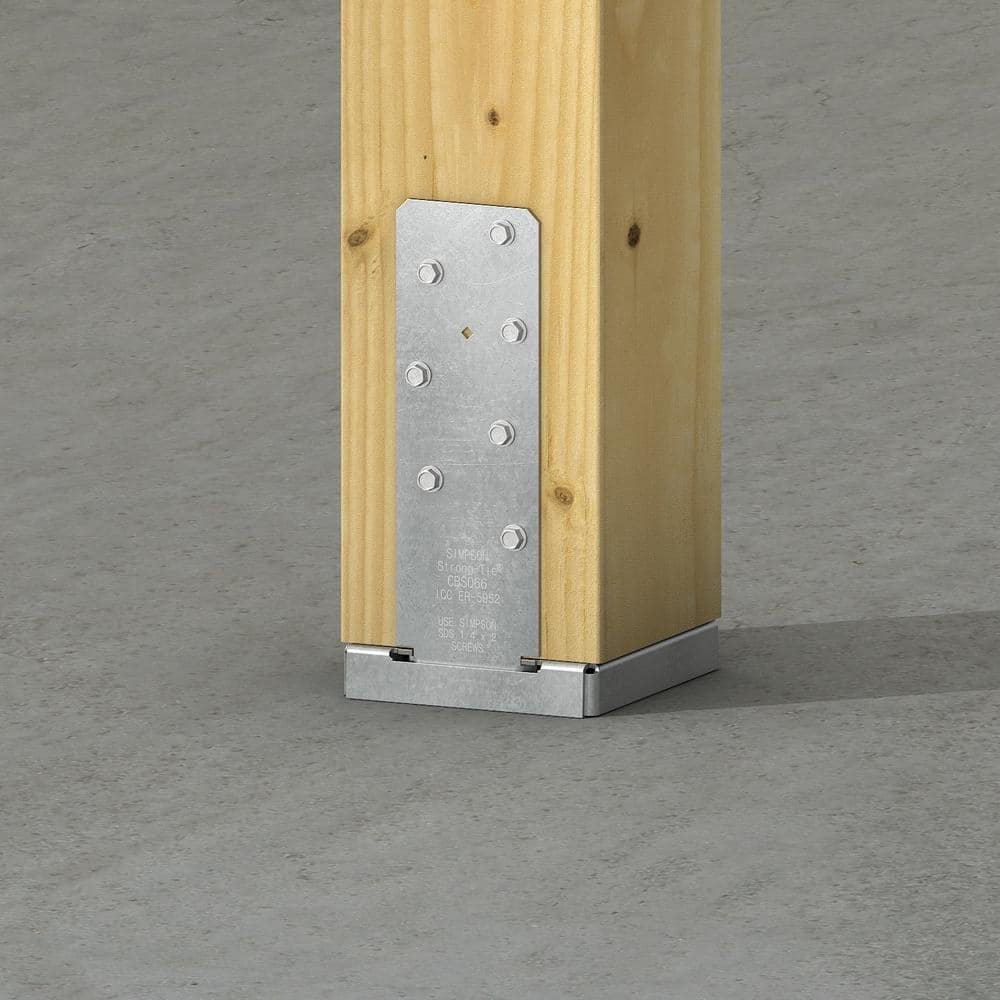

- Provides a 1-in standoff between post and concrete that meets code requirements

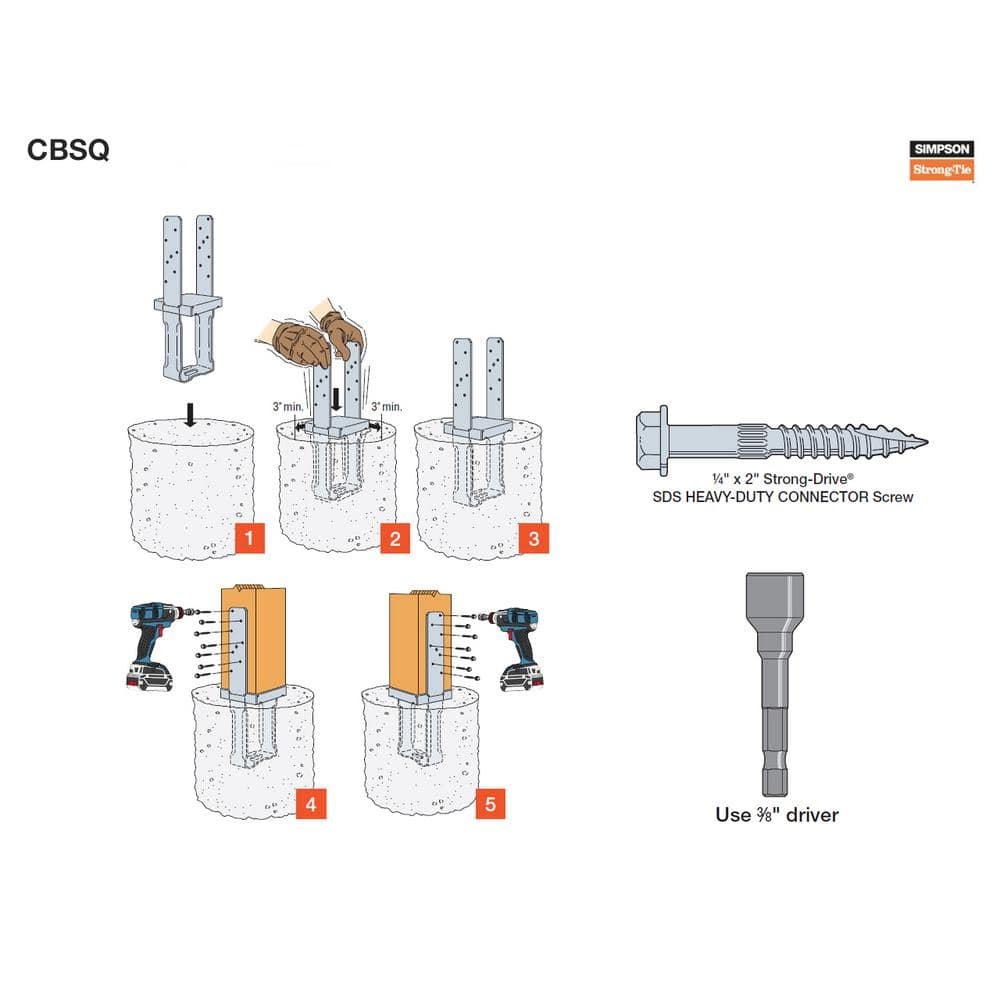

- Embeds in wet concrete at time of pour
- The standoff base reduces the potential for decay at post and column ends
- Shipped with base plate assembled
- Nominal column size: 6×6
- Steel gauge: Base 12; strap 10
- Galvanized (G90) for extra corrosion resistance
- Install with 1/4 in. x 2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
Specifications
| Nominal Post Size (in.) | 6×6 |
|---|---|
| Product Depth (in.) | 6.06 in |
| Product Height (in.) | 16.63 in |
| Product Width (in.) | 5.69 in |
| Base Type | Standoff Column Base |
| Connector Finish | G90 Galvanized |
| Fasteners Included | Fasteners Included |
| Features | No Additional Features |
| Gauge | 12 |
| Material | Steel |
| Material Connector Compatibility | Wood to Concrete |
| Package Quantity | 1 |
| Product Weight (lb.) | 6.21 lb |
