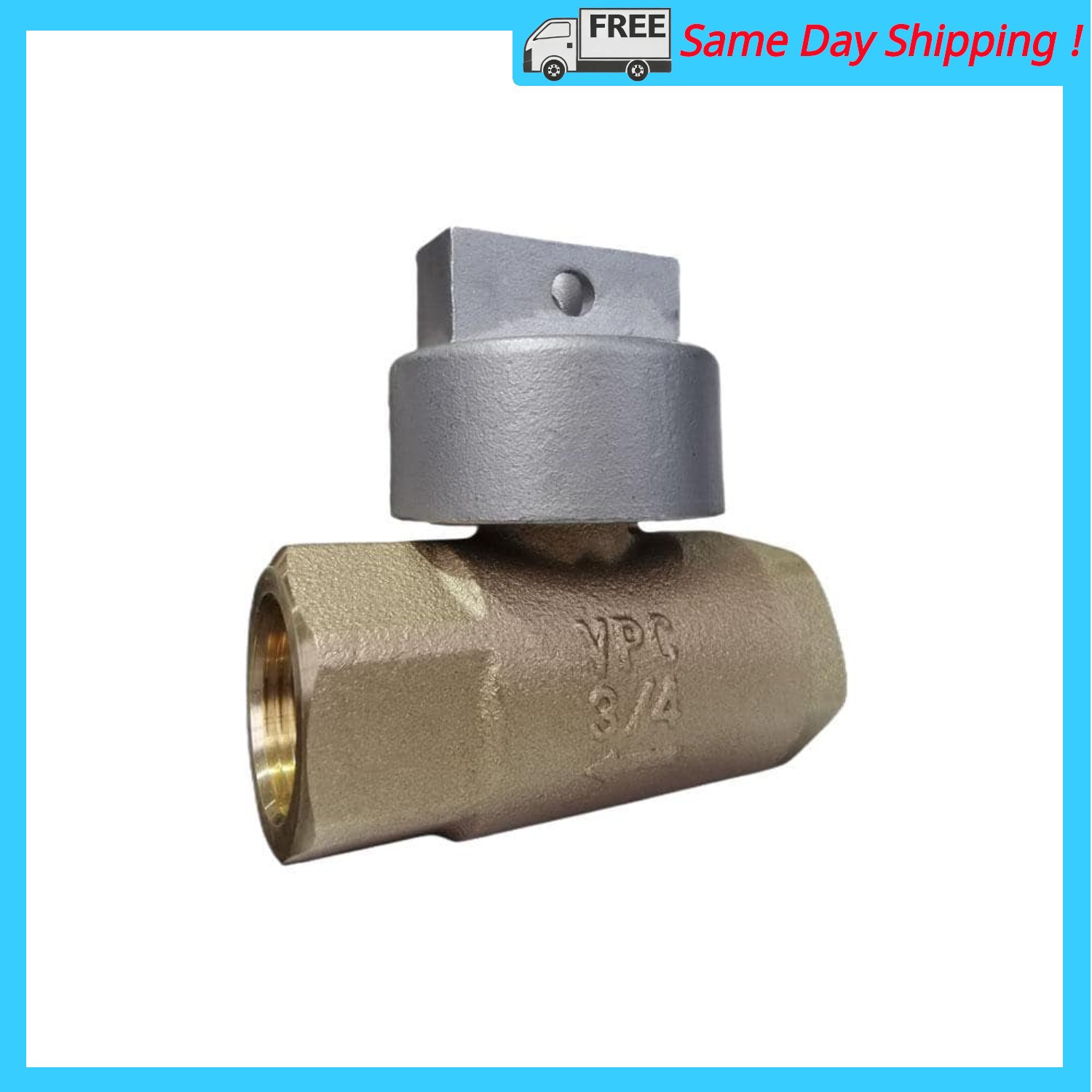

Name: 3/4 in. Bronze FNPT In-Line Irrigation Ball Valve with Automatic Drain -
SKU: 2232-VPC-33/4-Valve
Price: 39.95 USD
Availability: OutOfStock

Description

Product Overview

The Valencia Pipe Company In-Line Irrigation Ball Valve is the ideal solution for your irrigation system construction. Features include a 2-piece bronze body construction, stainless steel curb stop handle and automatic valve body drain in the off position. The automatic drain in the off position is designed to relieve any water caught in the cavity of the ball which will reduce the probability of valve failure due to freezing and/or bursting.

Key Features

2-piece design constructed of bronze for superior corrosion resistance
Stainless steel curb handle for superior corrosion resistance
Female pipe thread connections for ease of installation in any application
Reinforced seats and stem bearing to insure longevity
3/4 in. FNPT x 3/4 in. FNPT
600 psi cold non-shock
This product has very low levels of lead and is not considered lead-free.

Additional information

Inlet Diameter (In.)	3/4
Outlet Diameter (In.)	3/4
Product Depth (in.)	1.81 in
Product Height (in.)	3 in
Product Length (in.)	1.81 in
Product Width (in.)	2.96 in
Valve Inlet Diameter (in.)	3/4
Valve Outlet Diameter (in.)	.75
Application	Non-Potable Water
Compatible Pipe Material	PVC
Connection	FIP x FIP
Features	No Additional Special Features
Handle Style	Wing
Indoor/Outdoor	Outdoor
Material	Bronze
Maximum Pressure (PSI)	600 PSI
Maximum Working Temperature (F)	200
Pack Size	1
Product Weight (lb.)	1.59 lb
Valve Type	Ball
Valve Use	Water
