Description

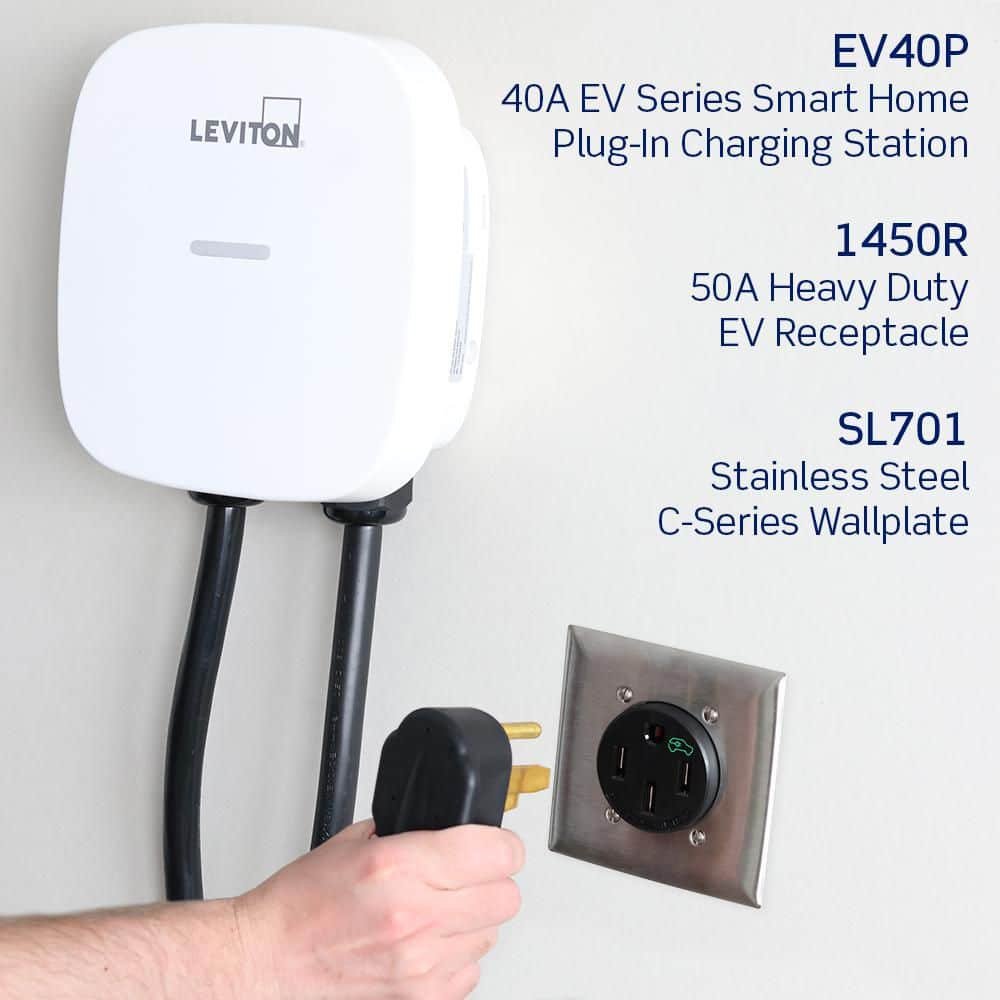

The Leviton 50A Heavy-Duty Flush Mount Receptacle is the ideal solution to power today’s Electric Vehicle Charging Stations as well as other high power-draw appliances. With its robust design and performance, the 50A Heavy-Duty Flush Mount Receptacle can sustain the necessary extended charge time and high frequency of insertions EV chargers require. This receptacle offers the perfect option for homeowners who prefer a plug-in application as opposed to a hardwire application and for future-focused new construction MDU projects that want to present an EV-ready environment.
Highlights
- Built of durable, high-impact nylon

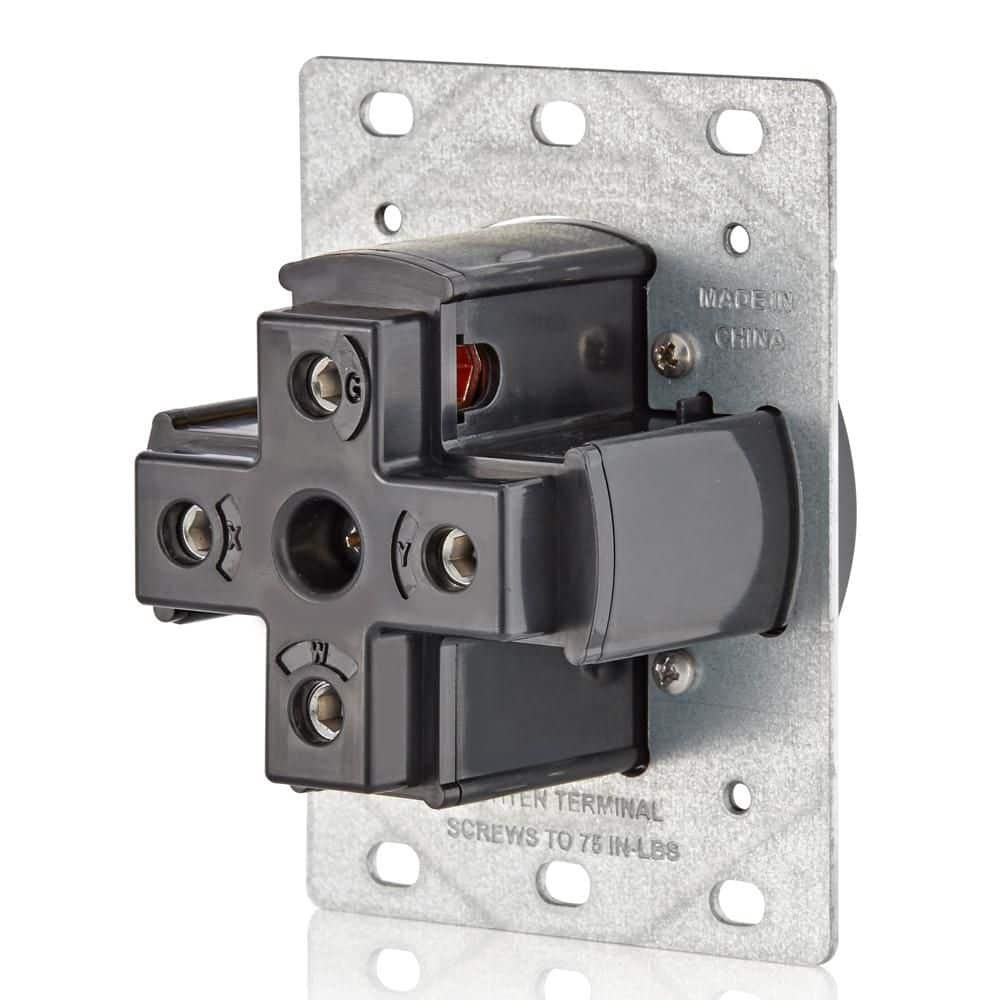

- Pressure-wire terminal connections ensures full-contact with the conductors, terminals require 75 in lbs.
- Heavy-gauge, high-performance copper contacts
- For use with #4, #6 or #8 AWG copper wire only may use #10 AWG solid or stranded copper wire for ground connection, do not use with copper-clad or aluminum wires on this device
Specifications
| Product Depth (in.) | 2.327 in |
|---|---|
| Product Height (in.) | 3.185 in |
| Product Width (in.) | 2.75 in |
| Amperage (A) | 50 A |
| Color Family | Black |
| Features | No Additional Features |
| Material | Nylon |
| NEMA Configuration | NEMA 14-50R |
| Package Quantity | 1 |
| Safety Rating | Grounded |
| Voltage (V) | 250 V |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminal |
| Certifications and Listings | cULus Listed |
